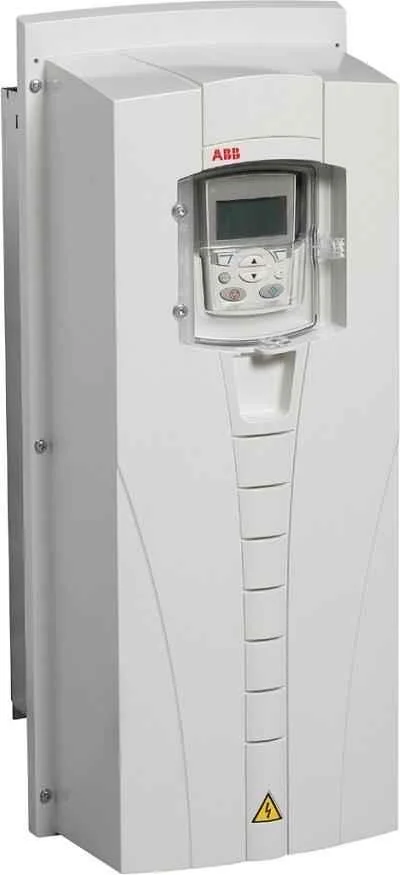

ABB 5.5kW 7.5HP 3 Phase Wall Mounted General Purpose Drive, ACS550-01-012A-4

Key Features

• Motor Control Method: Vector & Scalar., EMC Filters: Integrated C2 EMC Filter., Built-in Choke: Patented Built-in DC Swinging Choke., Dynamic Braking: Built-in Integrated Brake Chopper., Built-in Inputs & Outputs: 2AI, 2AO, 6DI & 3RO., Continuous rms Current at Heavy Duty-I鈧?A): 8.8.
• Typical Motor Power at 400V at Normal Use-Pn (kW): 5.5.
• Typical Motor Power at 400V at Heavy Duty Use-PHd(kW): 5.4.
• Typical Motor Power at 460V at Normal Use-Pn(HP): 7.5.
• Typical Motor Power at 460V at Heavy Duty use-PHd(HP): 5.4.
• Input Supply Voltage & Phase: 3 Phase 380-480V +10-15%.
• Frame Size & Dimension (HxWxD): R1(369x125x212mm)., Control Panel & Display Unit: Basic Control Panel Comes as a Standard., Continuous rms Current Allowing 110% Overload for 1 Min Every 10 mins-I鈧偵?A): 11.9.
