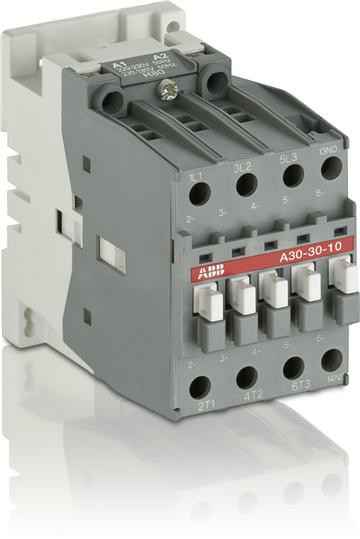

ABB A30-30-10 3 Pole Contactor, 1SBL281001R8010

• Conventional Free-air Thermal Current (I_th):

  acc. to IEC 60947-4-1, Open Contactors q = 40 deg C 65 A
  acc. to IEC 60947-5-1, q = 40 deg C 16 A

• Rated Operational Current AC-1 (I_e):

  (690 V) 40 deg C 55 A
  (690 V) 55 deg C 55 A
  (690 V) 70 deg C 39 A

• Rated Operational Current AC-3 (I_e):

  (220 / 230 / 240 V) 55 deg C 33 A
  (380 / 400 V) 55 deg C 32 A
  (415 V) 55 deg C 32 A
  (440 V) 55 deg C 32 A
  (500 V) 55 deg C 28 A
  (690 V) 55 deg C 21 A

• Rated Operational Power AC-3 (P_e):

  (220 / 230 / 240 V) 9 kW
  (380 / 400 V) 15 kW
  (415 V) 15 kW
  (440 V) 18.5 kW
  (500 V) 18.5 kW
  (690 V) 18.5 kW

• Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:

  8 x Ie AC-3

• Rated Making Capacity AC-3 acc. to IEC 60947-4-1:

  10 x Ie AC-3

• Rated Operational Current AC-15 (I_e):

  (220 / 240 V) 4 A
  (24 / 127 V) 6 A
  (380 / 440 V) 3 A
  (500 V) 2 A
  (690 V) 2 A

• Short-Circuit Protective Devices:

  Auxiliary Circuit - gG Type Fuses 10 A
  gG Type Fuses 63 A

• Maximum Breaking Capacity:

  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A
  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 340 A

• Maximum Electrical Switching Frequency:

  AC-1 600 cycles per hour
  AC-2 / AC-4 300 cycles per hour
  AC-3 1200 cycles per hour

• Rated Operational Current DC-13 (I_e):

  (125 V) 1.1 / 138 A
  (24 V) 6 / 144 A
  (250 V) 0.55 / 138 A
  (48 V) 2.8 / 134 A
  (72 V) 2 / 144 A

• Rated Insulation Voltage (U_i):

  acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
  acc. to UL/CSA 600 V

• Rated Impulse Withstand Voltage (U_imp):

  8 kV

• Mechanical Durability:

  10 million

• Maximum Mechanical Switching Frequency:

  3600 cycles per hour

• Rated Control Circuit Voltage (U_c):

  50 Hz 220 ... 230 V
  60 Hz 230 ... 240 V

• Coil Consumption:

  Average Holding Value 50 / 60 Hz 12 V·A
  Average Holding Value 50 / 60 Hz 3 W
  Average Pull-in Value 50 Hz 125 V·A
  Average Pull-in Value 60 Hz 120 V·A

• Connecting Capacity Main Circuit:

  Flexible with Cable End 2.5 ... 10 mm²
  Rigid Cable 2.5 ... 16 mm²

• Connecting Capacity Auxiliary Circuit:

  Flexible with Cable End 0.75 ... 2.5 mm²
  Rigid Cable 1 ... 4 mm²

• Degree of Protection:

  acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

• Connecting terminals (delivered in open position) Main poles:

  M 5 (+,-) pozidriv 2 screw with 2x (5.6x6.5 mm) connector

Environmental

• Ambient Air Temperature:

  Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 deg C
  Close to Contactor for Storage -60 ... +80 deg C
  Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +55 deg C
  Close to Contactor without Thermal O/L Relay (Uc) -40 ... +70 deg C

• Climatic Withstand:

  acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

• Maximum Operating Altitude Permissible:

  3000 m

• Resistance to Shock acc. to IEC 60068-2-27:

  Shock Direction: A 20 g
  Closed, Shock Direction: B1 10 g
  Open, Shock Direction: B1 5 g
  Shock Direction: B2 15 g
  Shock Direction: C1 20 g
  Shock Direction: C2 20 g

• RoHS Status:

  Following EU Directive 2002/95/EC August 18, 2005 and amendment
