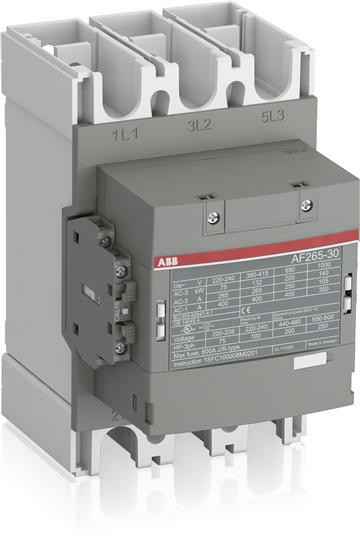

ABB AF265-30-11-13 3 Phase Contactor, 1SFL547002R1311

• Conventional Free-air Thermal Current (I_th):

  acc. to IEC 60947-4-1, Open Contactors q = 40 & 400 A

• Rated Operational Current AC-1 (I_e):

  (690 V) 55 & 350 A
  (690 V) 40 & 400 A
  (1000 V) 40 & 350 A
  (1000 V) 55 & 300 A
  (690 V) 70 & 290 A
  (1000 V) 70 & 240 A

• Rated Operational Current AC-3 (I_e):

  (1000 V) 55 & 100 A
  (220 / 230 / 240 V) 55 & 265 A
  (690 V) 55 & 250 A
  (415 V) 55 & 265 A
  (440 V) 55 & 265 A
  (380 / 400 V) 55 & 265 A
  (500 V) 55 & 250 A

• Rated Operational Power AC-3 (P_e):

  (220 / 230 / 240 V) 75 kW
  (380 / 400 V) 132 kW
  (415 V) 132 kW
  (440 V) 160 kW
  (500 V) 200 kW
  (690 V) 200 kW
  (1000 V) 132 kW

• Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1:

  8 x Ie AC-3

• Rated Making Capacity AC-3 acc. to IEC 60947-4-1:

  10 x Ie AC-3

• Short-Circuit Protective Devices:

  gG Type Fuses 500 A

• Rated Short-time Withstand Current (I_cw):

  at 40 & Ambient Temp, in Free Air, from a Cold State 15 min 400 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 30 s 1224 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 10 s 2120 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 1 s 2650 A
  at 40 & Ambient Temp, in Free Air, from a Cold State 1 min 865 A

• Maximum Breaking Capacity:

  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3800 A
  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3300 A

• Maximum Electrical Switching Frequency:

  AC-3 300 cycles per hour
  AC-1 300 cycles per hour
  AC-2 / AC-4 150 cycles per hour

• Rated Operational Current DC-1 (I_e):

  (110 V) 2 Poles in Series, 40 & 350 A
  (220 V) 3 Poles in Series, 40 & 350 A

• Rated Operational Current DC-3 (I_e):

  (110 V) 2 Poles in Series, 40 & 350 A
  (220 V) 3 Poles in Series, 40 & 350 A

• Rated Operational Current DC-5 (I_e):

  (110 V) 2 Poles in Series, 40 & 350 A
  (220 V) 3 Poles in Series, 40 & 350 A

• Mechanical Durability:

  5 million

• Maximum Mechanical Switching Frequency:

  300 cycles per hour

• Coil Operating Limits:

  (acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 &) &

• Rated Control Circuit Voltage (U_c):

  60 Hz 100 ... 250 V
  50 Hz 100 ... 250 V
  DC Operation 100 ... 250 V

• Coil Consumption:

  Pull-in at Max. Rated Control Circuit Voltage 60 Hz 385 V·A
  Holding at Max. Rated Control Circuit Voltage DC 4.5 W
  Holding at Max. Rated Control Circuit Voltage 50 Hz 17.5 V·A
  Pull-in at Max. Rated Control Circuit Voltage DC 410 W
  Pull-in at Max. Rated Control Circuit Voltage 50 Hz 385 V·A
  Holding at Max. Rated Control Circuit Voltage 60 Hz 17.5 V·A

• Connecting Capacity Main Circuit:

  Rigid Al-Cable 1 x 185 ... 240 mm²
  Rigid Cu-Cable 2 x 70 ... 185 mm²
  Flexible 2 x 70 ... 185 mm²

• Connecting Capacity Auxiliary Circuit:

  Solid 2 x 1 ... 4 mm²
  Flexible with Insulated Ferrule 2 x 0.75 ... 2.5 mm²
  Stranded 1 x 1 .... 4 mm²
  Flexible 2x0.75 ... 2.5 mm²
  Flexible with Ferrule 2 x 0.75 ... 2.5 mm²

Maximum Operating Altitude Permissible: 3000 m
