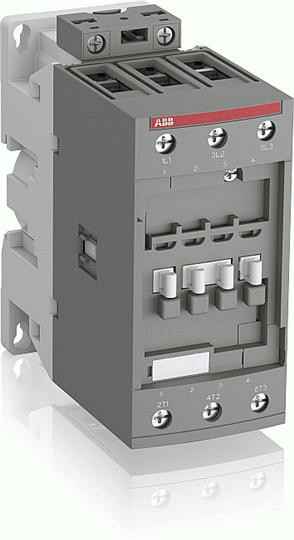

ABB AF52-30-00-11 3 Poles Contactor, 1SBL367001R1100 | Elemech

ABB AF52-30-00-11 3 Poles Contactor, 1SBL367001R1100

₹6,830.01 (Incl. of all taxes)

₹5,788.14 + ₹1,041.87 GST

MRP ₹20,697 67% OFF

₹6,830.01 (Incl. of all taxes)

₹5,788.14 + ₹1,041.87 GST

MRP ₹20,697 67% OFF

About This Product

Conventional Free-air Thermal Current (I_th):
acc. to IEC 60947-4-1, Open Contactors q = 40 & 105 A
Rated Operational Current AC-1 (I_e):
(690 V) 40 & 100 A
(690 V) 60 & 80 A
(690 V) 70 & 70 A
Rated Operational Current AC-3 (I_e):
(220 / 230 / 240 V) 60 & 53 A
(380 / 400 V) 60 & 53 A
(415 V) 60 & 53 A
(440 V) 60 & 53 A
(500 V) 60 & 45 A
(690 V) 60 & 35 A
Rated Operational Power AC-3 (P_e):
(220 / 230 / 240 V) 15 kW
(380 / 400 V) 22 kW
(400 V) 22 kW
(415 V) 30 kW
(440 V) 30 kW
(500 V) 30 kW
(690 V) 30 kW
Rated Short-time Withstand Current (I_cw):
at 40 & Ambient Temp, in Free Air, from a Cold State 10 s 600 A
at 40 & Ambient Temp, in Free Air, from a Cold State 15 min 110 A
at 40 & Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 & Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 & Ambient Temp, in Free Air, from a Cold State 30 s 350 A
for 1 s -empty- A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 600 A
Maximum Electrical Switching Frequency:
AC-1 600 cycles per hour
AC-2 / AC-4 150 cycles per hour
AC-3 1200 cycles per hour

Maximum Mechanical Switching Frequency:
3600 cycles per hour
Rated Control Circuit Voltage (U_c):
50 Hz 24 ... 60 V
60 Hz 24 ... 60 V
DC Operation 20 ... 60 V

Connecting Capacity Main Circuit:
Flexible with Insulated Ferrule 1/2x 4 ... 35 mm²
Flexible with Ferrule 1/2x 4 ... 35 mm²
Rigid 1/2x 6 ... 3 5 mm²
Connecting Capacity Control Circuit:
Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
Rigid 1/2x 1 ... 2.5 mm²

Climatic Withstand:
Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible:
3000 m
Resistance to Vibrations acc. to IEC 60068-2-6:
5 ... 300 Hz 3 g closed position / 3 g open position
Resistance to Shock acc. to IEC 60068-2-27:
Closed, Shock Direction: A 25 g
Closed, Shock Direction: B1 25 g
Closed, Shock Direction: B2 15 g
Closed, Shock Direction: C1 25 g
Closed, Shock Direction: C2 25 g
Open, Shock Direction: B1 5 g
