ABB AX65-30-11-80 3 Poles Contactor, 1SBL371074R8011 | Elemech

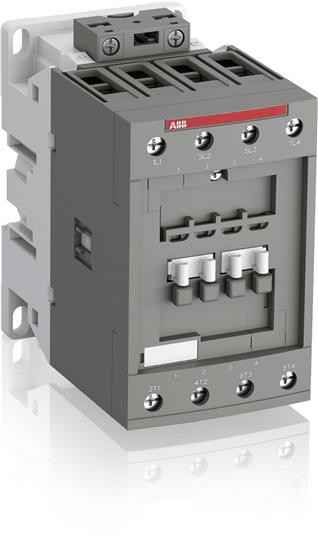

ABB AX65-30-11-80 3 Poles Contactor, 1SBL371074R8011

4.3 (133 Reviews)

₹10,778.04 (Incl. of all taxes)

₹9,133.93 + ₹1,644.11 GST

MRP ₹13,818 22% OFF

₹10,778.04 (Incl. of all taxes)

₹9,133.93 + ₹1,644.11 GST

MRP ₹13,818 22% OFF

About This Product

Key Features

Rated Insulation Volatge: Acc.to IEC 60947-4-1 & VDE 0110 (Gr. C): 690 V.
Rated Impulse Withstand Voltage: 6 KV.
Degree of Protection: Acc.to IEC 60529
IEC 60947-1
EN 60529 Coil Terminals IP20.
Acc.to IEC 60529
IEC 60947-1
EN 60529 Main Terminals IP10.

Product Specifications

Brand	ABB
Dimensions	8.2x11x1.8 cm
Frequency	Auxiliary Circuit: 50 - 60 Hz Main Circuit: 50 - 60 Hz
Item Code	AX65-30-11-80

Product Details

Conventional Free-air Thermal Current (I_th):
acc. to IEC 60947-4-1, Open Contactors q = 40 & 125 A
Rated Operational Current AC-1 (I_e):
(690 V) 40 & 115 A
(690 V) 70 & 80 A
(220 / 240 V) 55 & 95 A
Rated Operational Current AC-3 (I_e):
(220 / 230 / 240 V) 55 & 65 A
(380 / 400 V) 55 & 65 A
(415 V) 55 & 65 A
(440 V) 55 & 65 A
(500 V) 55 & 55 A
(690 V) 55 & 43 A
Rated Operational Power AC-3 (P_e):
(220 / 230 / 240 V) 18.5 kW
(380 / 400 V) 30 kW
(415 V) 37 kW
(440 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
Rated Short-time Withstand Current (I_cw):
at 40 & Ambient Temp, in Free Air, from a Cold State 10 s 650 A
at 40 & Ambient Temp, in Free Air, from a Cold State 15 min 135 A
at 40 & Ambient Temp, in Free Air, from a Cold State 1 min 250 A
at 40 & Ambient Temp, in Free Air, from a Cold State 1 s 1000 A
at 40 & Ambient Temp, in Free Air, from a Cold State 30 s 370 A
for 1 s -empty- A
Maximum Breaking Capacity:
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A
Maximum Electrical Switching Frequency:
AC-1 600 cycles per hour
AC-3 600 cycles per hour

Maximum Mechanical Switching Frequency:
3600 cycles per hour
Rated Control Circuit Voltage (U_c):
50 Hz 220 ... 230 V
60 Hz 230 ... 240 V

Climatic Withstand:
acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II
Maximum Operating Altitude Permissible:
3000 m
