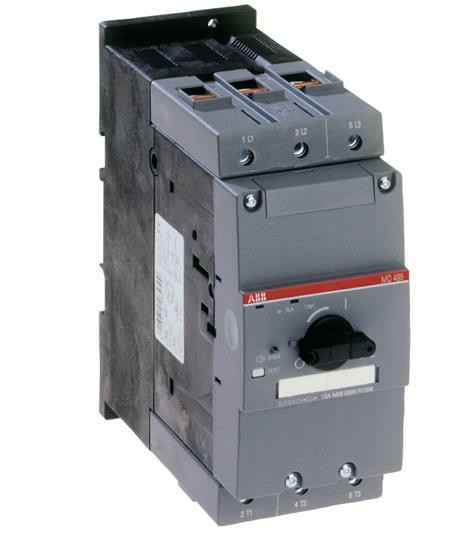

ABB MO495-63 3 Pole Manual Motor Starter, 1SAM560000R1007

• Rated Service Short-Circuit Breaking Capacity (I_cs):

  (230 V AC) 100 kA
  (400 V AC) 25 kA
  (440 V AC) 20 kA
  (500 V AC) 6 kA
  (690 V AC) 3 kA

• Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

  (230 V AC) 100 kA
  (400 V AC) 50 kA
  (440 V AC) 50 kA
  (500 V AC) 12 kA
  (690 V AC) 6 kA

• Rated Instantaneous Short-Circuit Current Setting (I_i):

  819 A

• Setting Range:

  None

• Rated Operational Current AC-3 (I_e):

  63 A

• Rated Impulse Withstand Voltage (U_imp):

  Main Circuit 6 kV

• Conventional Free-air Thermal Current (I_th):

  Main Circuit 63 A

• Degree of Protection:

  Housing IP20
  Main Circuit Terminals IP00

• Pollution Degree:

  3

• Electrical Durability:

  25000 cycle

• Mechanical Durability:

  50000 cycle

• Connecting Capacity Main Circuit:

  Flexible with Ferrule 1x 2.5 ... 50 mm²
  Flexible with Ferrule 2x 2.5 ... 35 mm²
  Solid 1/2x 2.5 ... 16 mm²
  Stranded 1x 10 ... 70 mm²
  Stranded 2x 10 ... 50 mm²

• Tightening Torque:

  Main Circuit 4 ... 6 N·m

• Wire Stripping Length:

  Main Circuit 17 mm

• Recommended Screw Driver:

  Hexagon 4

• Mounting Position:

  Position 1 to 6

• Mounting on DIN Rail:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

• Actuator Type:

  Rotary Handle

• Contact Position Indication:

  ON / OFF / TRIP

• Remarks:

  For overload protection of the motors, an appropriate thermal or electronic overload relays must be used

Environmental

• Ambient Air Temperature:

  Operation -20 ... +70 deg C
  Storage -50 ... +80 deg C

• Ambient Air Temperature Compensation:

  No

• Maximum Operating Altitude Permissible:

  2000 m

• Resistance to Shock acc. to IEC 60068-2-27:

  11 ms Pulse 25g

• RoHS Status:

  Following EU Directive 2011/65/EU

Technical UL/CSA

• Maximum Operating Voltage UL/CSA:

  Main Circuit 600 V AC

• Ampere Rating UL/CSA:

  63 A

• Horsepower Rating UL/CSA:

  (200 V AC) Three Phase 20 Hp
  (208 V AC) Three Phase 20 Hp
  (220 ... 240 V AC) Three Phase 25 Hp
  (440 ... 480 V AC) Three Phase 50 Hp
  (550 ... 600 V AC) Three Phase 60 Hp

• General Use Rating UL/CSA:

  (600 V AC) 63 A

• Connecting Capacity Main Circuit UL/CSA:

  Flexible 1x 10-2/0 AWG
  Flexible 1/2x 10-1/0 AWG
  Stranded 1x 10-2/0 AWG
  Stranded 1/2x 10-1/0 AWG

• Tightening Torque UL/CSA:

  Main Circuit 35 ... 53 in·lb
