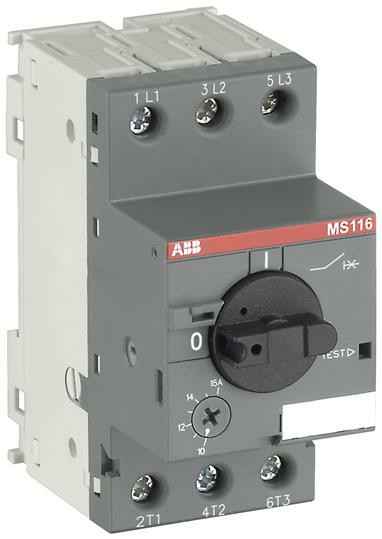

ABB MS116-0.25 3 Pole Manual Motor Starter, 1SAM250000R1002

• Rated Service Short-Circuit Breaking Capacity (I_cs):

  (230 V AC) 50 kA
  (400 V AC) 50 kA
  (440 V AC) 30 kA
  (500 V AC) 30 kA
  (690 V AC) 30 kA

• Rated Ultimate Short-Circuit Breaking Capacity (I_cu):

  (230 V AC) 50 kA
  (400 V AC) 50 kA
  (440 V AC) 30 kA
  (500 V AC) 30 kA
  (690 V AC) 30 kA

• Rated Instantaneous Short-Circuit Current Setting (I_i):

  3.1 A

• Setting Range:

  0.16 ... 0.25 A

• Rated Operational Power AC-3 (P_e):

  (400 V) Three Phase 0.06 kW

• Rated Operational Current AC-3 (I_e):

  0.25 A

• Rated Impulse Withstand Voltage (U_imp):

  Main Circuit 6 kV

• Conventional Free-air Thermal Current (I_th):

  Main Circuit 0.25 A

• Degree of Protection:

  Housing IP20
  Main Circuit Terminals IP10

• Pollution Degree:

  3

• Electrical Durability:

  100000 cycle

• Mechanical Durability:

  100000 cycle

• Connecting Capacity Main Circuit:

  Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
  Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
  Flexible 1/2x 0.75 ... 2.5 mm²
  Rigid 1/2x 1 ... 4 mm²

• Tightening Torque:

  Main Circuit 0.8 ... 1.2 N·m

• Wire Stripping Length:

  Main Circuit 9 mm

• Recommended Screw Driver:

  Pozidriv 2

• Mounting Position:

  Position 1 to 6

• Mounting on DIN Rail:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

• Minimum Mounting Distance:

  Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
  Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
  Electrical Conductive Board, Vertical 75 mm
  Other Device Same Type, Horizontal 0 mm
  Other Device Same Type, Vertical 150 mm

• Actuator Type:

  Rotary Handle

• Contact Position Indication:

  ON / OFF

Environmental

• Ambient Air Temperature:

  Around the Enclosure 0 ... +40 deg C
  Operation -25 ... +70 deg C
  Operation Compensated -25 ... +55 deg C
  Storage -50 ... +80 deg C

• Ambient Air Temperature Compensation:

  Yes

• Maximum Operating Altitude Permissible:

  2000 m

• Resistance to Shock acc. to IEC 60068-2-27:

  11 ms Pulse 25g

• Resistance to Vibrations acc. to IEC 60068-2-6:

  5g / 3 ... 150 Hz

• RoHS Status:

  Following EU Directive 2011/65/EU

Technical UL/CSA

• Maximum Operating Voltage UL/CSA:

  Main Circuit 600 V AC

• Ampere Rating UL/CSA:

  0.25 A

• Full Load Amps Motor Use:

  (110 ... 120 V AC) Three Phase 0.25 A
  (200 V AC) Three Phase 0.25 A
  (208 V AC) Three Phase 0.25 A
  (220 ... 240 V AC) Three Phase 0.25 A
  (440 ... 480 V AC) Three Phase 0.25 A
  (550 ... 600 V AC) Three Phase 0.25 A

• Locked Rotor Amps:

  (110 ... 120 V AC) Three Phase 1.5 A
  (200 V AC) Three Phase 1.5 A
  (208 V AC) Three Phase 1.5 A
  (220 ... 240 V AC) Three Phase 1.5 A
  (440 ... 480 V AC) Three Phase 1.5 A
  (550 ... 600 V AC) Three Phase 1.5 A

• General Use Rating UL/CSA:

  (600 V AC) 0.25 A

• Connecting Capacity Main Circuit UL/CSA:

  Flexible 1/2x 16-12 AWG
  Stranded 1/2x 16-12 AWG

• Tightening Torque UL/CSA:

  Main Circuit 10 in·lb
