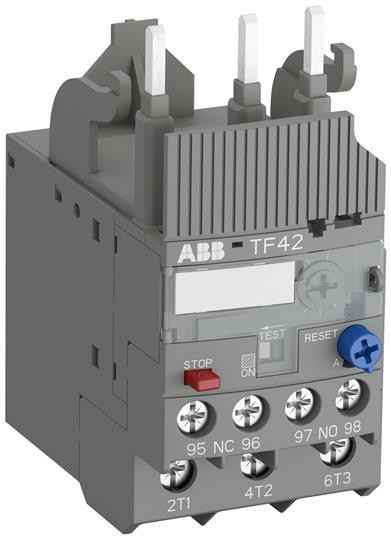

ABB TF42-0.17 3 Pole Thermal Overload Relay, 1SAZ721201R1008

• Setting Range:

  0.13 ... 0.17 A

• Rated Impulse Withstand Voltage (U_imp):

  Auxiliary Circuit 6 kV
  Main Circuit 6 kV

• Number of Protected Poles:

  3

• Conventional Free-air Thermal Current (I_th):

  Auxiliary Circuit NC 6 A
  Auxiliary Circuit NO 4 A

• Rated Operational Current AC-15 (I_e):

  (120 V) NC 3 A
  (120 V) NO 0.75 A
  (240 V) NC 3 A
  (240 V) NO 0.75 A
  (400 V) NC 0.75 A
  (400 V) NO 0.75 A
  (500 V) NC 0.75 A
  (500 V) NO 0.75 A

• Rated Operational Current DC-13 (I_e):

  (125 V) NC 0.55 A
  (125 V) NO 0.55 A
  (24 V) NC 1.25 A
  (24 V) NO 1.25 A
  (250 V) NC 0.27 A
  (250 V) NO 0.27 A
  (500 V) NC 0.15 A
  (500 V) NO 0.15 A
  (60 V) NC 0.55 A
  (60 V) NO 0.55 A

• Degree of Protection:

  IP20

• Pollution Degree:

  3

• Connecting Capacity Auxiliary Circuit:

  Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
  Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²
  Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²
  Flexible 1/2x 0.75 ... 1 mm²
  Flexible 1/2x 1 ... 2.5 mm²
  Rigid 1/2x 0.75 ... 4 mm²

• Connecting Capacity Main Circuit:

  Flexible with Ferrule 1/2x 0.75 ... 4 mm²
  Flexible with Insulated Ferrule 1/2x 0.75 ... 4 mm²
  Flexible 1/2x 0.75 ... 4 mm²
  Rigid 1/2x 0.75 ... 4 mm²

• Tightening Torque:

  Auxiliary Circuit 1 ... 1.5 N·m
  Main Circuit 1.5 ... 2.5 N·m

• Wire Stripping Length:

  Auxiliary Circuit 9 mm
  Main Circuit 12 mm

• Recommended Screw Driver:

  Main Circuit Pozidriv 2

• Mounting Position:

  Position 1 to 5

Environmental

• Ambient Air Temperature:

  Operation -25 ... +60 deg C
  Operation Compensated -25 ... +60 deg C
  Storage -50 ... +80 deg C

• Ambient Air Temperature Compensation:

  Yes

• Maximum Operating Altitude Permissible:

  2000 m

• Resistance to Shock acc. to IEC 60068-2-27:

  11 ms Pulse 25g

• Resistance to Vibrations acc. to IEC 60068-2-6:

  5g / 3 ... 150 Hz

• RoHS Status:

  Following EU Directive 2011/65/EU

Technical UL/CSA

• Maximum Operating Voltage UL/CSA:

  Main Circuit 600 V AC

• Ampere Rating UL/CSA:

  0.17 A

• Contact Rating UL/CSA:

  (NC:) B600
  (NC:) Q600
  (NO:) Q600
  (NO:) D300

• Connecting Capacity Main Circuit UL/CSA:

  Flexible 1/2x 18-10 AWG
  Stranded 1/2x 18-10 AWG

• Connecting Capacity Auxiliary Circuit UL/CSA:

  Flexible 1/2x 18-12 AWG
  Stranded 1/2x 18-12 AWG

• Tightening Torque UL/CSA:

  Auxiliary Circuit 9 ... 13 in·lb
  Main Circuit 13 ... 22 in·lb
