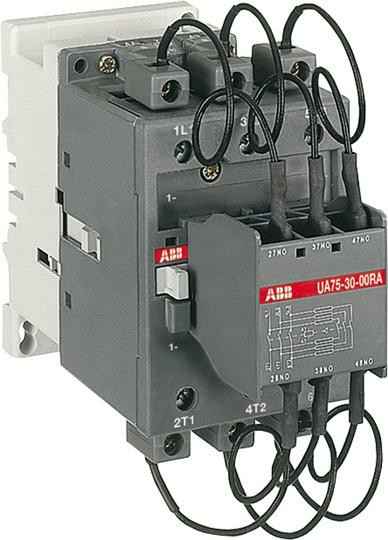

ABB UA75-30-00RA 3 Poles Contactor, 1SBL411024R8400

• Short-Circuit Protective Devices:

  gG Type Fuses 200 A

• Maximum Breaking Capacity:

  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A
  cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A

• Maximum Electrical Switching Frequency:

  240 cycles per hour

• Rated Control Circuit Voltage (U_c):

  50 Hz 110 V
  60 Hz 110 ... 120 V

• Coil Consumption:

  Average Holding Value 50 / 60 Hz 18 V·A
  Average Holding Value 50 / 60 Hz 5.5 W
  Average Holding Value 50 Hz 18 V·A
  Average Holding Value 50 Hz 5.5 W
  Average Holding Value 60 Hz 18 V·A
  Average Holding Value 60 Hz 5.5 W
  Average Pull-in Value 50 Hz 180 V·A
  Average Pull-in Value 60 Hz 210 V·A

• Connecting Capacity Main Circuit:

  Rigid Cable 6 ... 16 mm²
  Flexible with Cable End 6 ... 10 mm²

• Connecting Capacity Auxiliary Circuit:

  Rigid Cable 1 ... 4 mm²
  Flexible with Cable End 0.75 ... 2.5 mm²

Connecting terminals (delivered in open position) Main poles: M 6 (+, -) pozidriv 2 screws with 1x (13 x 10 mm) connector

• Climatic Withstand:

  acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

• Maximum Operating Altitude Permissible:

  3000 m
